When using an HTC 500 floor grinder for concrete polishing, many contractors ask the same practical question:
Should I use a 9 inch fiber polishing pad or a 3 inch resin polishing pad?
The honest answer is that both pad types can be useful on an HTC 500 when the machine is fitted with the correct pad holder, adapter, or backing plate. But they are not used for exactly the same purpose.
A 9 inch fiber polishing pad is usually better for wider floor contact, faster coverage, dry surface refinement, and gloss improvement on concrete that has already been prepared.
The best choice depends less on pad size and more on the condition of the floor.
Can an HTC 500 Use Both Pad Types?
Yes. An HTC 500 can work with different polishing pad systems if the correct holder or adapter setup is used.
This is why contractors often compare 9 inch fiber polishing pads with 3 inch resin polishing pads for the same machine. The machine may support both systems, but each system changes how the tool contacts the concrete.
A larger fiber pad spreads pressure over a wider area. This helps with coverage and surface refinement.
Smaller resin pads create more controlled contact points. This helps with scratch removal and grit-by-grit polishing.
Before ordering pads, always confirm the holder type, Velcro connection, bolt pattern, and working diameter required for your HTC 500 setup.

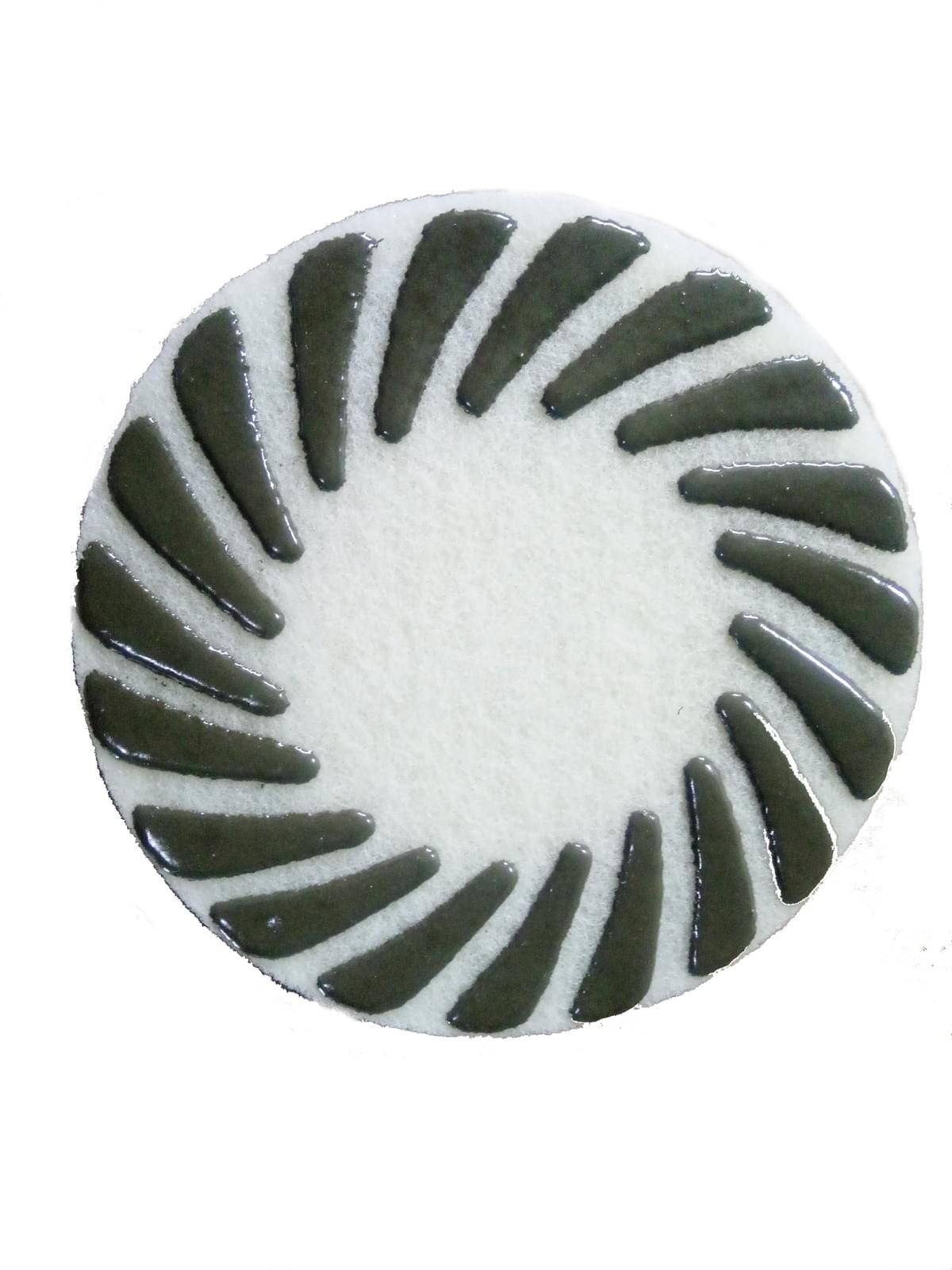

When to Use 9 Inch Fiber Polishing Pads on HTC 500
A 9 inch fiber polishing pad is a strong choice when the concrete floor has already been properly prepared.
Use it when:
- The floor is already opened and relatively flat
- Heavy grinding marks have been reduced
- The contractor wants faster area coverage
- The goal is dry polishing, refinement, or gloss improvement
- The floor does not need aggressive scratch correction
For example, 50 grit and 200 grit fiber polishing pads can be useful in the early refinement stage after the concrete has already been ground and prepared. The 50 grit step can help continue surface refinement, while the 200 grit step can prepare the floor for a smoother finish.
The key point is this: a 9 inch fiber polishing pad works best when the floor is ready for refinement. It should not be expected to fix deep scratches, uneven grinding marks, or poor surface preparation by itself.

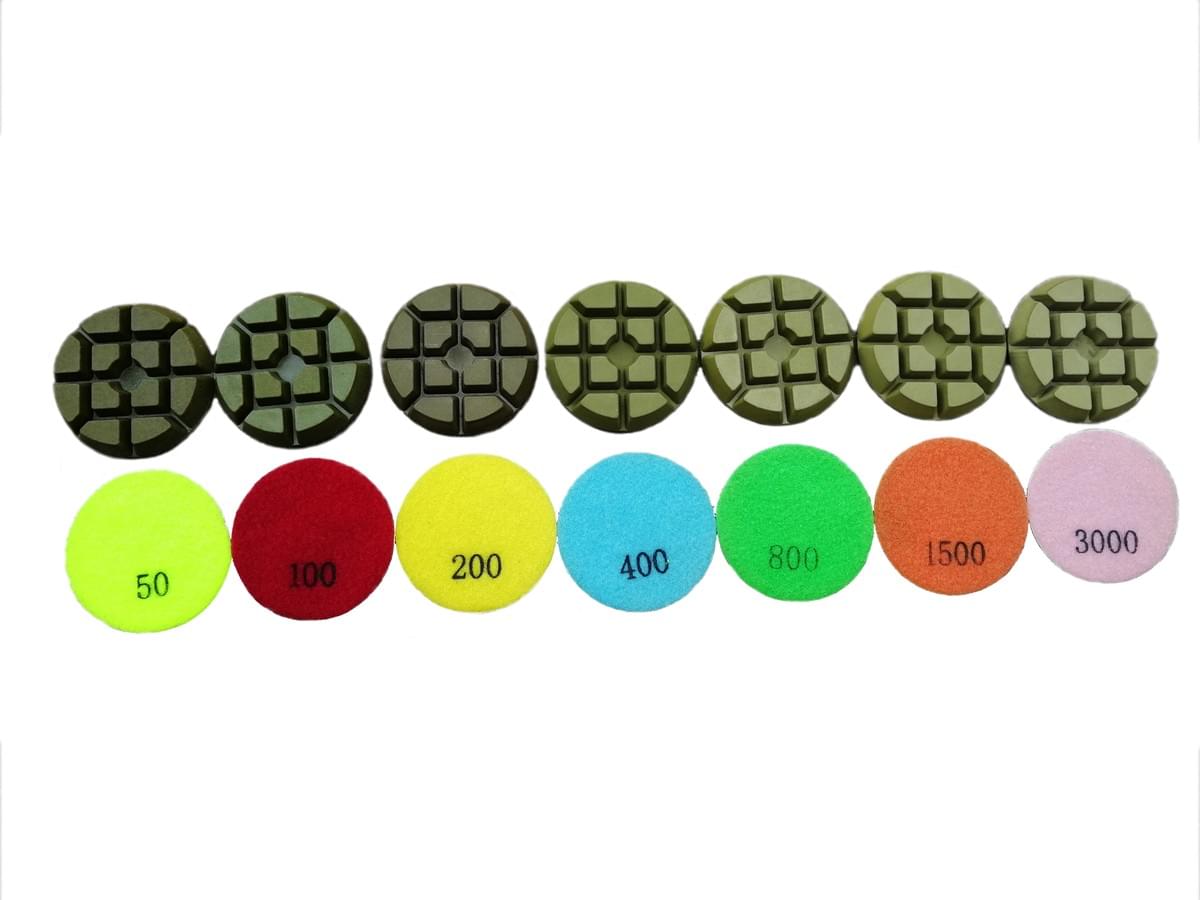

When to Use 3 Inch Resin Pads on HTC 500
A 3 inch resin polishing pad is usually the better choice when the contractor needs more control over the polishing sequence.
- The floor still needs scratch refinement
- You are following a standard grit sequence
- You need predictable results from one step to the next
- The project requires a true polished concrete finish
- You are moving from grinding or transitional tools into resin polishing
Common polishing sequences may include steps such as 100, 200, 400, 800, 1500, and 3000 grit, depending on the concrete condition and finish target.
For many HTC 500 users, 3 inch resin pads are the safer choice when the goal is controlled scratch removal and consistent gloss development.
Which Pad Gives a Better Finish?
The better finish comes from the correct sequence, not from one pad size alone.
If the concrete has already been properly prepared, a 9 inch fiber polishing pad can produce efficient gloss improvement and cover more area per pass.
If the concrete still has visible scratches or needs controlled refinement, 3 inch resin polishing pads usually give a more predictable result.
In simple terms:
9 inch fiber polishing pads are better for speed, coverage, surface refinement, and gloss improvement.
3 inch resin polishing pads are better for scratch control, step-by-step polishing, and consistent final results.
Practical Recommendation for HTC 500 Users
For an HTC 500 concrete polishing project, think in stages.
If the floor needs opening, leveling, or coating removal, start with the correct grinding tools.
If the floor still has visible scratches after grinding, use the right transitional or resin polishing steps before trying to build gloss.
Use 3 inch resin polishing pads when you need controlled scratch refinement and a standard polished concrete sequence.
Use 9 inch fiber polishing pads when the floor is already prepared and you want faster dry polishing, wider coverage, or gloss improvement.
Many contractors keep both systems available because they solve different problems. They are not direct replacements for each other.
Common Mistake: Choosing Only by Pad Size
A larger pad does not automatically create a better finish.
A smaller pad does not automatically mean slower or lower performance.
The real question is:
What condition is the concrete floor in right now?
If the previous step left deep scratches, the next pad must be able to remove those scratches. If the floor is already refined, a larger fiber polishing pad may be the more efficient choice.
For HTC 500 concrete polishing, the correct decision is not “which pad is better?” The better question is:
Which pad is right for this stage of the floor?
FAQ
Can I use 9 inch fiber polishing pads on an HTC 500?
Yes, if the HTC 500 is fitted with the correct pad holder, adapter, or backing plate for that pad system.
Can I use 3 inch resin polishing pads on an HTC 500?
Yes, 3 inch resin pads can be used when the machine has the proper holder or Velcro adapter setup.
Which pad is better after grinding concrete?
If scratches are still visible, 3 inch resin pads are usually better for controlled refinement. If the floor is already refined, 9 inch fiber pads can help improve gloss and coverage.
Which pad is better for final shine?
For a prepared floor, 9 inch fiber polishing pads can improve gloss efficiently. For a full controlled polishing sequence, 3 inch resin pads are usually more predictable.
Should HTC 500 contractors buy both?
Often, yes. 3 inch resin pads are useful for controlled polishing steps, while 9 inch fiber pads are useful for larger-area refinement and gloss improvement.
Final Recommendation
For HTC 500 concrete polishing, do not treat 9 inch fiber polishing pads and 3 inch resin polishing pads as the same tool.
Choose 3 inch resin pads when you need scratch refinement, grit-by-grit control, and a standard polished concrete process.
Choose 9 inch fiber polishing pads when the floor is already prepared and you want faster coverage, dry surface refinement, or gloss improvement.
The best result comes from using the right pad at the right stage.
