The MONKEY KING Pad Driver Plate is designed for compatible HTC floor grinder systems that require a matching holder or adapter setup for grinding and polishing tools.

This product page provides three purchasing options: one 180mm plate, one 230mm plate or three T Mode pad driver adapters.

The 180mm and 230mm options are intended for buyers who need a complete pad driver plate in the selected diameter. The three-piece T Mode option is for buyers who need individual adapter components instead of a complete plate.

This product is a plate, holder or adapter component. It does not contain diamond abrasive and is not a metal bond grinding tool, PCD tool, hybrid pad or resin polishing pad.

For related machine-compatible tooling, visit our HTC Grinder Tools page.

Available Options

Option 1 — 180mm Plate for HTC Grinder, 1 Piece

One nominal 7-inch / 180mm pad driver plate for a compatible HTC floor grinder system.

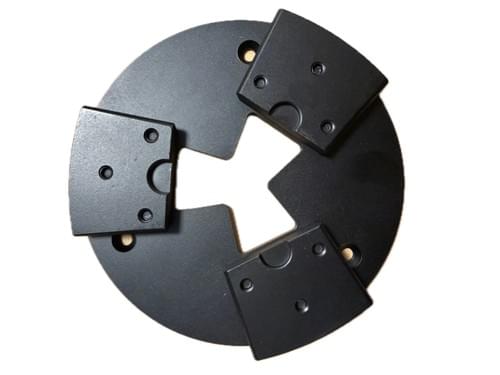

The supplied reference image shows a three-holder plate configuration.

Choose this option when your existing plate diameter, center connection and mounting pattern match the 180mm configuration.

Option 2 — 230mm Plate for HTC Grinder, 1 Piece

One nominal 9-inch / 230mm pad driver plate for a compatible HTC floor grinder system.

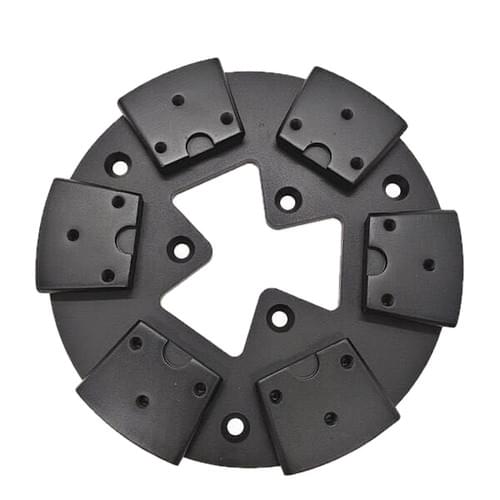

The supplied product image shows a six-holder plate configuration.

Choose this option when your existing plate diameter, center connection and mounting pattern match the 230mm configuration.

Option 3 — T Mode Pad Driver Adapters, 3 Pieces

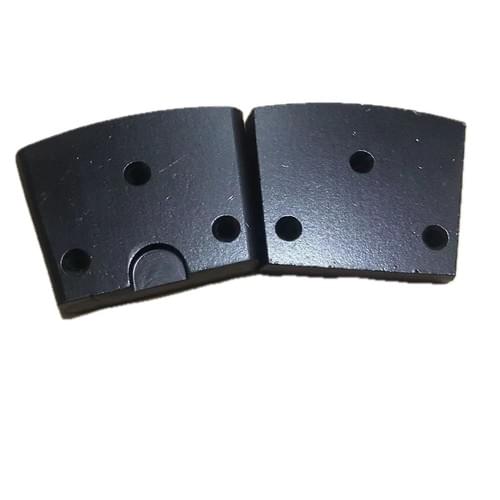

Three individual T Mode pad driver adapter components.

Choose this option when you already have the correct compatible plate and need individual T Mode adapters instead of another complete plate.

The three purchasing options are separate. Check the selected specification carefully before placing the order.

Best For

• Replacing a compatible 180mm or 230mm pad driver plate on an HTC floor grinder

• Keeping spare T Mode pad driver adapters for maintenance or replacement

• Contractors operating compatible HTC concrete floor grinding equipment

• Concrete grinding and polishing workflows that require the correct holder setup

• Distributors supplying machine-specific plates and replacement adapter components

• Buyers who need either a complete plate or individual replacement adapters

Key Features

• Two complete plate sizes: 180mm / 7 Inch and 230mm / 9 Inch

• 180mm plate option: 1 piece

• 230mm plate option: 1 piece

• T Mode pad driver adapter option: 3 pieces

• Stainless steel material specified on the reference product pages

• Three holder positions visible on the supplied 180mm plate image

• Six holder positions visible on the supplied 230mm plate image

• Separate complete-plate and replacement-adapter purchasing options

• Designed for compatible HTC concrete floor grinding and polishing setups

Buyer Decision Guide

Choose the 180mm Plate — 1 Piece option if:

• Your existing plate has a nominal 180mm / 7-inch diameter

• You need the complete 180mm plate rather than individual adapters

• The center drive connection and mounting pattern match your machine

• Your intended grinding or polishing tooling matches the holder interface

Choose the 230mm Plate — 1 Piece option if:

• Your existing plate has a nominal 230mm / 9-inch diameter

• You need the complete 230mm plate rather than individual adapters

• The center drive connection and mounting pattern match your machine

• Your intended grinding or polishing tooling matches the holder interface

Choose the T Mode Pad Driver Adapters — 3 Pieces option if:

• You already have the correct compatible plate

• You need three individual T Mode adapter components

• You are replacing worn, damaged or missing adapters

• You do not need another complete 180mm or 230mm plate

Fitment Note

Do not order this product by the HTC brand name or plate diameter alone.

HTC floor grinders can use different plate diameters, center drive connections, mounting patterns and holder systems.

Before ordering, confirm:

• Grinder brand and complete machine model

• Existing plate diameter

• 180mm or 230mm size requirement

• Center drive opening and connection shape

• Mounting-hole number and spacing

• Existing plate front and back appearance

• Required holder or pad-driver interface

• Type of grinding or polishing tool you want to install

• Whether you need a complete plate or three individual T Mode adapters

• Maximum rated speed of the machine, plate and installed tooling

If the plate system is uncertain, compare your setup with our Adapters and Plates page and send us clear photos before ordering.

How to Use

1. Disconnect the grinder.

Switch off the grinder and disconnect it from the power supply before removing or installing a plate or adapter.

2. Remove the existing plate.

Follow the machine manufacturer’s instructions when removing the original plate or holder.

3. Confirm the required diameter.

Measure and verify whether the machine requires the 180mm or 230mm configuration.

4. Compare the mounting interface.

Check the center drive connection, mounting holes, holder pattern and working direction against the existing setup.

5. Install the selected product.

Install the complete 180mm plate, complete 230mm plate or three T Mode adapter components according to the confirmed machine configuration.

6. Secure the fasteners.

Make sure all bolts, adapters and retaining components are installed and tightened according to the machine manufacturer’s instructions.

7. Check tool seating.

Confirm that every grinding or polishing tool sits evenly and cannot move loosely inside the holders.

8. Perform a controlled test.

Before starting full operation, check plate rotation, balance, clearance and tool retention at a controlled operating speed.

9. Stop if the setup is unstable.

Do not continue operating if there is unusual vibration, uneven rotation, loose tooling or abnormal noise.

Always follow the grinder and tooling manufacturers’ operating and safety instructions.

Frequently Asked Questions

What purchasing options are available?

You can select one 180mm plate, one 230mm plate or a three-piece set of T Mode pad driver adapters.

What is the difference between the 180mm and 230mm plates?

The primary difference is the nominal plate diameter and visible holder layout. The machine connection and mounting pattern must also match the existing grinder setup.

Does the plate fit every HTC grinder?

No. Fitment depends on the machine model, plate diameter, center drive connection, mounting pattern and holder system.

What does the T Mode option include?

The T Mode option contains three individual pad driver adapter components.

Is this a diamond grinding tool?

No. It is a plate, holder or adapter component. Diamond grinding or polishing tools must be selected separately.

Can it hold both metal and resin tools?

The reference listing describes the plate as a holder for compatible metal diamond tools or resin bond polishing pads. The actual tool must have the correct matching holder interface.

Can I select the plate from the machine brand alone?

No. Machines sold under the same brand can use different plate diameters and connection systems.

What information should I provide before ordering?

Send the grinder brand and model, existing plate diameter, front and back plate photos, center connection photo, mounting-hole measurements and the type of tool you want to install.

Are the 180mm plate, 230mm plate and adapters included together?

No. They are three separate purchasing options. Select the required option before placing the order.

Need Help Confirming Fitment?

Still not sure which option fits your grinder?

Contact Monkey King Diamond Tools and send us the grinder model, plate diameter, front and back photos, center connection and the tooling system you plan to use.

We will help check whether you need the 180mm plate, 230mm plate or three-piece T Mode adapter option.
