Scanmaskin Diamonds & Tooling for Concrete Grinding
Shop diamond grinding shoes, PCD coating removal tools and adapters for Scanmaskin grinders.
Find tools for removing coatings, preparing concrete and progressing toward a polished finish.
Select your product options and order online.
Choose Scanmaskin Diamond Tooling by the Job
Start with the condition of your floor. Bare concrete may not need a coating-removal step, while a floor being prepared for a new coating may not need a full polishing sequence.
Remove coatings and adhesive
Use PCD coating removal tools for suitable epoxy, glue, mastic and coating-removal applications. Select the rotation direction specified for your machine setup.
Grind and prepare concrete
Use metal bond grinding tools for concrete grinding, surface preparation and scratch-pattern refinement. Choose the bond for the concrete hardness and the grit for the amount of material you need to remove.
Refine metal-tool scratches
Use hybrid pads between metal grinding and resin polishing when the remaining scratch pattern needs further refinement.
Continue to the polishing stage
Use resin polishing pads to refine the surface toward your selected finish. Follow the grit sequence and wet or dry method specified for the pad.
Mounting Options for Scanmaskin Grinders
Match the product’s mounting connection to your installed tool holder. For alternative tooling systems or polishing-pad holders, browse adapters and plates. The adapter must match both the grinder connection and the tool or pad it carries.
For other grinder brands, browse shop by machine.

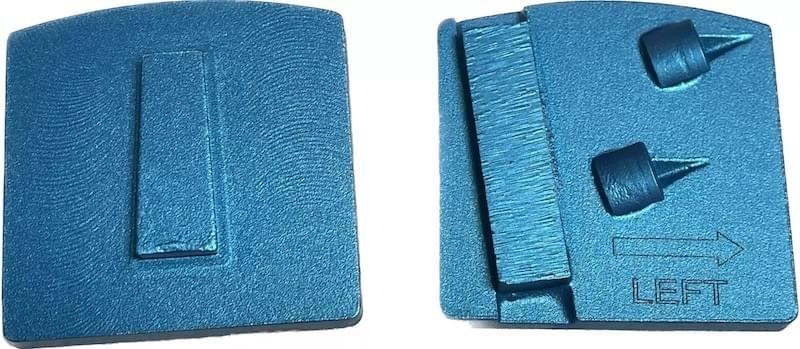

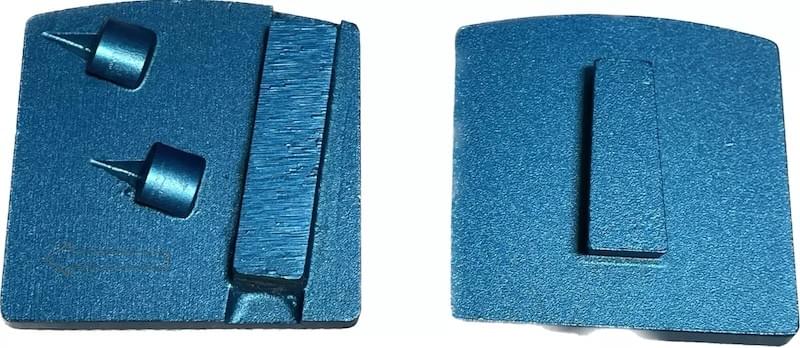

PCD Coating Removal Tools for Scanmaskin Grinders
Remove suitable coatings and adhesive residue before concrete grinding. Choose the required rotation option on the product page.

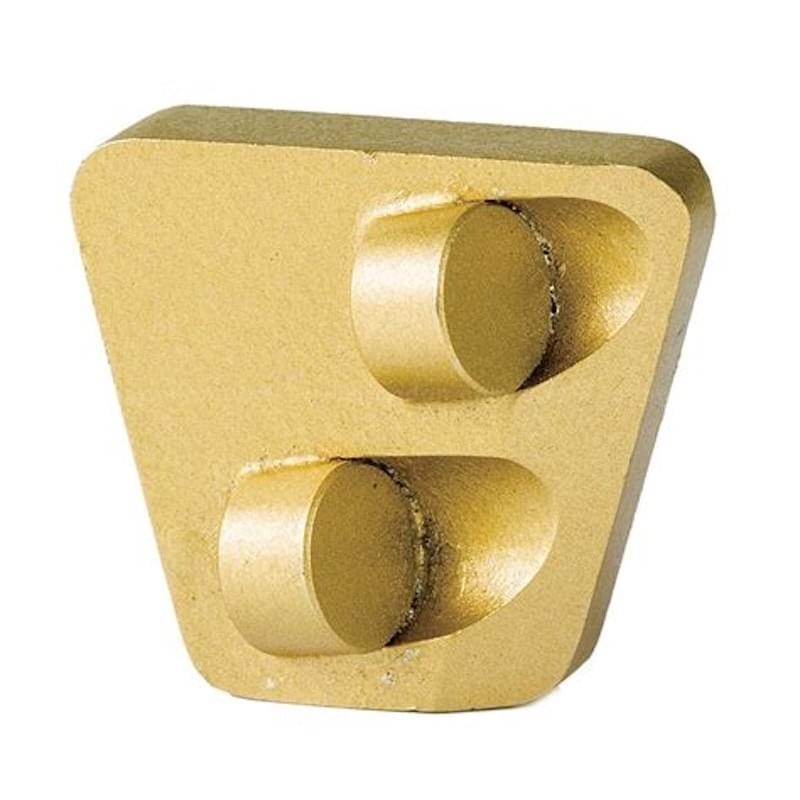

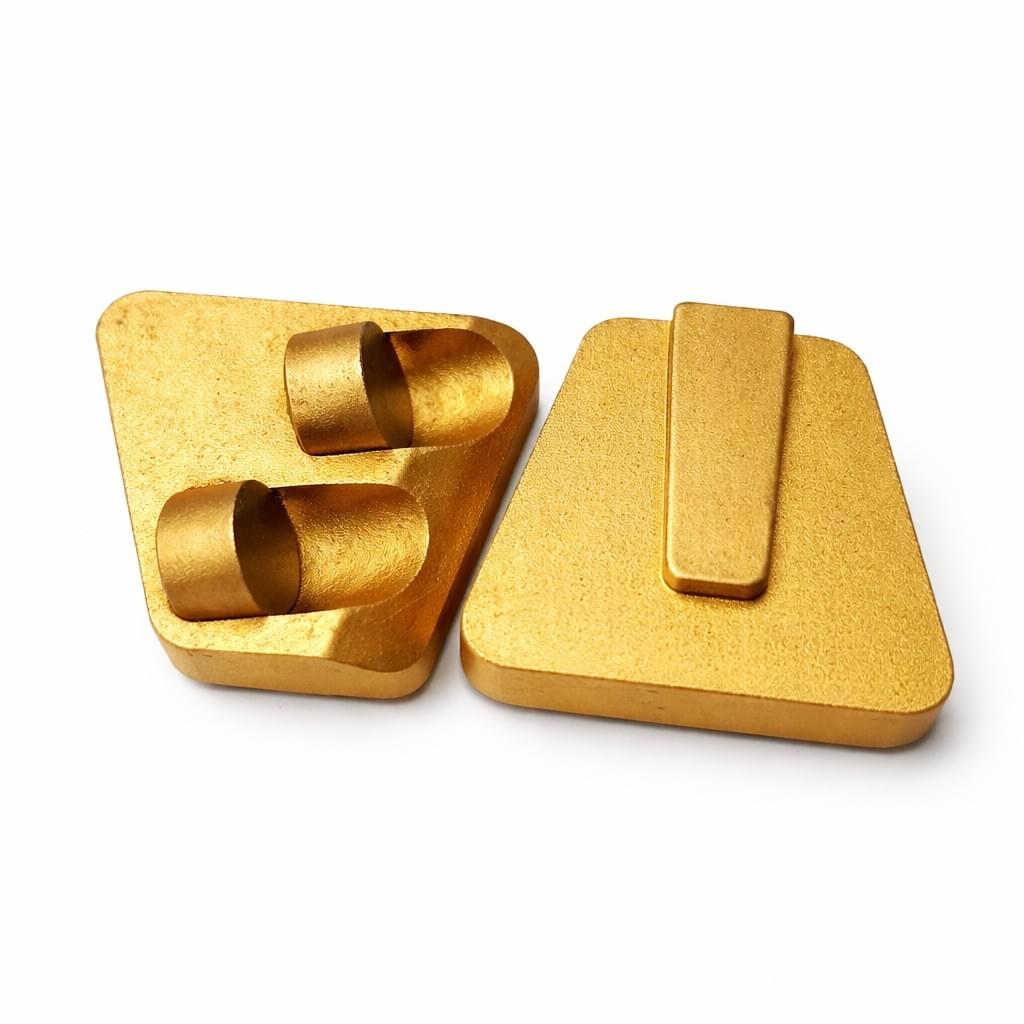

Metal Bond Grinding Tools for Scanmaskin
Grind concrete and refine the scratch pattern. Select the available bond and grit for your floor condition.
Hybrid & Transitional Pads for Concrete
Refine metal-tool scratches before resin polishing. Choose the pad size and backing that match your holder.
Resin Polishing Pads for Concrete
Refine the surface toward your selected finish. Choose the appropriate size, grit and wet or dry option.
Scanmaskin Adapters & Resin Pad Holders
Browse adapters and holders for alternative tooling connections and polishing pads. Select the connection specified for your setup.
Frequently Asked Questions
What are Scanmaskin diamonds used for?
Diamond tooling for Scanmaskin grinders is used for concrete grinding, surface preparation and scratch refinement. PCD tools serve suitable coating-removal applications, while transitional and resin pads support later polishing stages.
When should I use PCD tools instead of metal bond diamonds?
Use PCD coating removal tools when the main task is removing a suitable coating or adhesive. Use metal bond diamonds when the task is grinding exposed concrete. Choose the PCD rotation option specified for your machine setup.
Which bond should I choose for concrete grinding?
As a general guide, harder concrete calls for a softer bond, while soft, abrasive concrete calls for a harder bond. Choose from the bond options listed on the selected metal bond grinding tools.
When should I use hybrid or transitional pads?
Use hybrid pads when the metal-grinding stage is complete but the scratch pattern still needs refinement before resin polishing. Deep grooves or uneven grinding may need correction at an earlier stage.
Can I use hook-and-loop resin pads on my Scanmaskin grinder?
Hook-and-loop resin polishing pads require a matching pad holder. Select the pad diameter and backing connection specified for your installed holder.
What does a Scanmaskin adapter do?
An adapter connects a compatible tool or pad holder to the grinder’s tooling system. Different adapters serve different connections; one adapter does not fit every tool. Browse adapters and plates for the listed mounting options.
Need Help Comparing Scanmaskin Tooling?
We can help you compare grinding shoes, PCD tools and adapter options for your next job.
