MONKEY KING 10 Inch 250mm Magnetic Adapter Plate for CUB Floor Grinder | 3×9mm Trapezoid Metal & PCD Tools

Overview

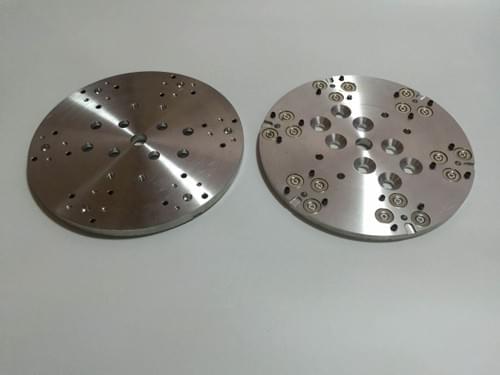

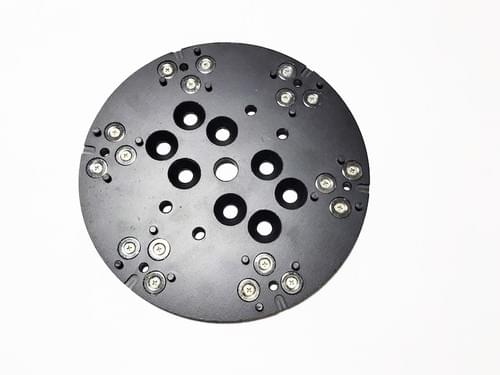

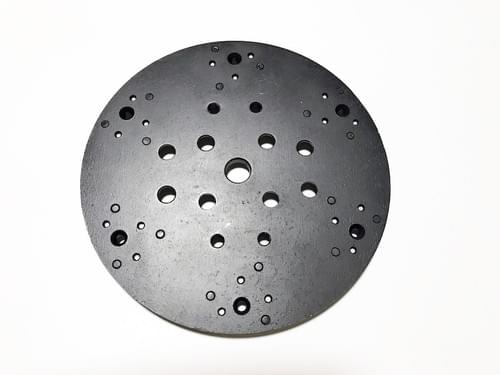

The MONKEY KING 10 inch / 250mm magnetic adapter plate is designed for compatible CUB floor grinders.

It converts the machine-side grinding disc into three quick-change tool positions for matching trapezoid metal-bond grinding shoes and PCD coating-removal tools with a compatible 3×9mm-hole back.

This adapter plate supports two different floor-preparation stages. Install compatible PCD tools for coating removal, then change to suitable metal-bond trapezoid tools for concrete opening, leveling and scratch control.

The plate itself is a machine-to-tool conversion accessory. Grinding and removal performance depends on the selected trapezoid tooling, bond, grit, segment design, floor condition and operating method.

Best For

• Converting a compatible 250mm CUB grinder to trapezoid tooling

• Running 3×9mm-hole trapezoid metal-bond grinding shoes

• Installing compatible trapezoid PCD coating-removal tools

• Epoxy, glue, paint and coating-removal setups

• Concrete surface opening after coating removal

• General grinding, leveling and scratch control

Features

• 10 inch / 250mm adapter-plate size

• Designed for compatible CUB floor grinders

• Three evenly positioned trapezoid-tool stations

• Magnetic quick-change tool retention

• Locator structure for matching trapezoid tools

• Supports compatible metal-bond and PCD tooling

• Allows quicker tool changes between floor-preparation stages

Compatible Tool Types

Use only trapezoid tools whose back connection matches the magnetic holder and locator arrangement.

Compatible configurations can include:

• 3×9mm-hole single-segment metal-bond trapezoid tools

• 3×9mm-hole double-segment metal-bond trapezoid tools

• Arrow-segment trapezoid grinding shoes

• Bar-segment trapezoid grinding shoes

• Button-segment trapezoid grinding shoes

• Compatible trapezoid PCD coating-removal tools

Segment shape does not confirm fitment by itself. The back-hole pattern, hole diameter, locator positions and magnetic seating must also match.

Do not assume that Lavina-style, Redi Lock, HTC EZchange, SASE, Diamatic or other proprietary quick-change tools will fit this plate.

Fitment Note

Confirm all of the following before ordering:

• Complete grinder brand and model

• Existing machine-side plate photo

• Machine mounting-hole pattern

• Required plate diameter: 250mm / 10 inch

• Trapezoid-tool front and back photos

• Back-hole pattern: 3×9mm

• Magnetic and locator seating

• Metal-bond or PCD tool type

• Required grit and bond

• PCD working direction, when applicable

• Required quantity

• Coating type or concrete condition

The words “250mm” and “trapezoid tool” alone do not guarantee fitment.

For other machine-conversion products, see Adapters and Plates. If the machine or tooling interface is unclear, check Shop by Machine or Contact Us before ordering.

How to Use

1. Disconnect the floor grinder from its power supply.

2. Place the machine in a stable tool-changing position.

3. Remove the existing grinding disc or holder plate.

4. Compare the machine mounting holes with the 250mm adapter plate.

5. Install and tighten the adapter plate using the correct machine-side fasteners.

6. Install three matching trapezoid tools with the same interface and segment height.

7. Confirm that every tool is fully seated against the magnetic holder and locators.

8. Rotate the plate manually to check clearance.

9. Start with a controlled setup and stop immediately if a tool moves, the plate loosens or abnormal vibration occurs.

For epoxy, glue, paint or coating removal, install compatible PCD coating removal tools.

After the coating has been removed, change to suitable metal-bond grinding tools for concrete opening, leveling and scratch control.

Do not use PCD tools as polishing tools. Do not move directly from aggressive coating removal to resin polishing without completing the required grinding and scratch-refinement stages.

FAQ

What is this adapter plate mainly used for?

It converts a compatible 250mm CUB floor grinder to run matching magnetic quick-change trapezoid metal-bond or PCD tools.

Is it for coating removal, grinding, transition or polishing?

The plate itself is a fitment-conversion accessory. With compatible PCD tools it supports coating removal; with compatible metal-bond trapezoid tools it supports concrete grinding and scratch control. It is not a polishing pad holder.

Does it fit every 250mm grinder or every trapezoid tool?

No. The machine mounting holes and the trapezoid-tool back connection must match. Confirm the machine model, plate pattern and 3×9mm tool interface before ordering.

What should I send before ordering?

Send the complete grinder model, a clear photo of the existing machine plate, mounting-hole measurements, and front-and-back photos of the trapezoid tools you want to use. Also include the coating type, concrete condition, required grit or bond and required quantity.
